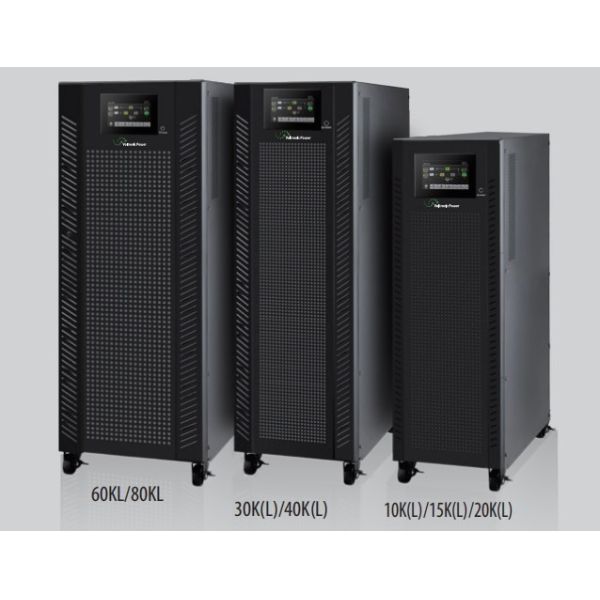

| MODEL |
10K (L)* |
15K(L) |
20K (L)* |
30K (L)* |
40K (L) |
60KL |
80KL |
| PHASE |
3Ph in/ 3Ph out or 3Ph in 1Ph out or 1Ph in 1Ph out |
3-phase in / 3-phase out |
| CAPACITY |
10KVA /10KW |
15KVA /15KW |
20KVA /20KW |
30KVA /30KW |
40KV /40KW |
60KVA /60KW |
80KVA /80KW |
| PARALLEL CAPABILITY |
up to 4 units in parallel |
up to 6 units in parallel |
| INPUT |
| Nominal Voltage |
3X400Vac (3Ph+N) /230Vac(1Ph+N) |
3 x 380/400/415 VAC (3Ph+N) |
| Voltage Range |
110-300 VAC @ 50% load
176-276 VAC @ 100% load |
-30% ~ +20% |
| Frequency Range |
46~54 Hz or 56~64Hz |
40~70 Hz |
| Power Factor |
≧ 0.99 @ 100% Load |
| Harmonic Distortion (THDi) |
< 4% at full linear load |
| OUTPUT |
| Output Voltage |
3X380/400/415Vac (3Ph+N) or 208/220/230/240 VAC (1Ph+N) |
3 x 360*/380/400/415 VAC (3Ph+N) |
| AC Voltage Regulation (Batt. Mode) |
± 1% |
| Frequency Range (Synchronized Range) |
46~54Hz or 56~64Hz |
| Frequency Range (Batt. Mode) |
50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
50/60 Hz ± 1% |
| Current Crest Ratio |
3:1 (max.) |
| Harmonic Distortion |
≦ 2% THD (Linear Load) ; ≦ 5 % THD (Non-linear Load) |
Transfer
Time |
AC Mode to Batt. Mode |
Zero |
| Inverter to Bypass |
Zero |
| Waveform (Batt. Mode) |
Pure Sine wave |
Overload
Capability |
AC Mode |
100-110% for 60 min, 110-125% for 10 min, 125%~150% 1min, >150% immediately |
| Battery Mode |
100-110% for 60 min, 110-125% for 10 min, 125%~150% 1min, >150% immediately |
| BYPASS |
| Nominal Voltage |
3 x 380/400/415 VAC (3Ph+N) |
| Voltage Range |
-30% ~ +20% (Adjustable) |
| Frequency Range (Synchronized Range) |
46~54Hz or 56~64Hz |
| Overload Capability |
> 130% 1 minute (default) ; continuously working until breaker protection (optional) |
| EFFICIENCY |
| AC Mode |
95.5% |
96.0% |
| ECO Mode |
98.5% |
99.0% |
| Battery Mode |
94.5% |
96.0% |
| BATTERY |
Standard
Model |
Battery Type |
12V Lead Acid |
12V Lead Acid |
12 V/7 Ah |
12 V/9 Ah |
N/A |
| Numbers |
(10+10) PCS |
(16+16) PCS |
(16+16) pcs x 2 strings |
| Typical Recharge Time |
4 hours recover to 90% capacity |
9 hours recover to 90% capacity |
| Charging Current (max.) |
2A (Adjustable) |
1A ~ 12A |
1A ~ 16 A (Adjustable) |
| Charging Voltage |
+/-13.65V*N (N = 10) |
+/-13.65V*N (N = 16~20) |
+/-218 VDC ± 10% |
Long-run
Model |
Battery Type |
Depending on the applications |
| Numbers |
20PCS |
32PCS |
+/-16 pcs ~ +/- 20 pcs (Adjustable) |
| Charging Current (max.) |
1A/2A/3A/4A/5A/6A/7A/8A/9A/10A/11A/12A (Adjustable)12A maximum |
1A ~ 12A (Adjustable) |
1A~16 A (Adjustable) |
2A~24 A (Adjustable) |
2A~32A(Adjustable) |
| Charging Voltage |
+/-136.5VDC±10% |
+/-13.65V x N (N=16~20) |
| INDICATORS |
| LCD Panel |
UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions |
| PHYSICAL |
Standard
Model |
Dimension,DxWxH (mm) |
630 x 250 x 826 |
815 x 300 x 1000 |
N/A |
| Net Weight (kgs) |
103 |
139 |
225 |
250 |
Long-run
Model |
Dimension,DxWxH (mm) |
630 x 250 x 826 |
815 x 300 x 1000 |
790 x 360 x 1010 |
| Net Weight (kgs) |
36 |
43 |
60 |
67 |
108 |
113 |
| ENVIRONMENT |
| Operation Temperature |
0-40°C |
| Operation Humidity |
< 95% and non-condensing |
| Altitude** |
0 ~ 1500m at full load |
| Noise Level |
Less than 60 dB@1 Meter |
Less than 65 dB @1 Meter |
Less than 63 dB @1 Meter |
Less than 65 dB @1 Meter |
| MANAGEMENT |
| Smart RS-232 / USB |
Supports Windows® Family, Linux and MAC |
| Optional SNMP |
Power management from SNMP manager and web browser |
